-Type: Small chip LED

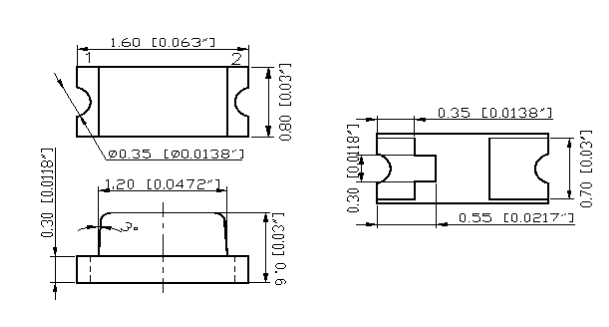

-Specification:0603
-Power: 0.06W, 0.1W, 0.2W
-Number of chips: single core
-Chip brand: wafer
-Luminous angle: 120 °
-Glow color: red/yellow/blue/green/orange/warm white light/positive white light/cold white light/white to yellow/white to red/pink light/ice blue light
| model | colour | Waveband (nm) | Brightness (mcd) | Voltage (vf) | Angle (deg) | Current (mA) |
| 0603 | Red light | 620-680 | 50-300 | 1.8-2.3 | 120° | 20mA |
| Green light | 515-530 | 150-450 | 2.8-3.2 | |||
| Blue light | 460-470 | 50-200 | 2.8-3.2 | |||
| Yellow light | 588-595 | 50-300 | 1.8-2.3 | |||
| Orange light | 600-610 | 50-300 | 1.8-2.3 | |||
| Ortho white | 5500-7500K | 150-500 | 3.0-3.4 | |||
| Cold whiteness | 75000-25000K | 150-500 | 3.0-3.4 | |||
| Warm White | 2000-4500K | 100-400 | 3.0-3.4 | |||
| White to yellow | 1600-2000K | 100-400 | 3.0-3.4 | |||
| White to red | 618-623 | 50-300 | 3.0-3.4 |
Home lightingLEDLCD display screen, illuminated signage, acrylic vacuum formed lettering, lightbox, backlight, corporate storefront signageLight strips, table lamps, etc
